SPEED REGULATORS FOR SINGLE-PHASE MOTORS

RELIABLE SOLUTIONS FOR SPEED CONTROL OF SINGLE-PHASE INDUCTION MOTORS

AVAILABLE IN ANALOG AND DIGITAL VERSIONS

Our speed controllers are designed to ensure precise control of single-phase induction motors of various power ratings. Available in analog and digital versions.

Easy to use                                    Simple installation                            Reliable and robust                            Interior design

Ideal for:

  • Extraction systems
  • Hoods for professional kitchens (Ho.Re.Ca sector)
  • Laboratory hoods
  • Room ventilation

ANALOGUE REGULATORS

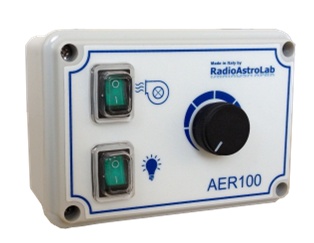

AER100 5A

Compact and practical, ideal for low power applications.

  • Continuously variable motor speed regulation
  • Light control
  • Size: 128x88x73 mm
  • Optional load management: 230Vac -50Hz – Max 1A
  • Power supply: 230Vac – 50Hz
  • Maximum load motor: 4,5A continuous use, 5A discontinuous use
  • Maximum load lights : 5A
  • IP protection: IP55
  • Protection fuse: T10A

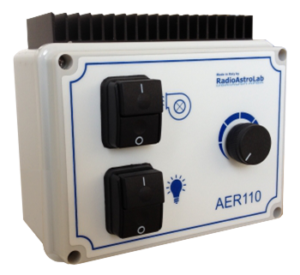

AER110 8A

Versatile solution for medium power applications.

  • Continuously variable motor speed regulation
  • Light management and control of up to 2 motors
  • Size: 158x130x95 mm
  • Optional load management: 230Vac -50Hz – Max 1A
  • Power supply: 230Vac – 50Hz
  • Maximum load motor: 8A
  • Maximum load lights : 5A
  • IP protection: IP50
  • Protection fuse: T12,5A

AER120 10A

The most powerful model in the range.

  • High load capacity
  • Light management and control of up to 2 motors
  • Size: 158x140x95 mm
  • Optional load management: 230Vac -50Hz – Max 1A
  • Power supply: 230Vac – 50Hz
  • Maximum load motor: 10A
  • Maximum load lights : 5A
  • IP protection: IP50
  • Protection fuse: T12,5A

DIGITAL REGULATORS

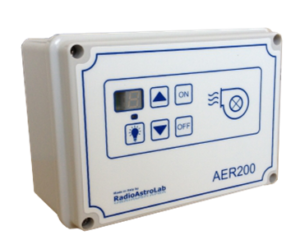

AER200 4,5A

Advanced speed control solution with digital interface and sensor integration. Ideal for advanced extraction and air quality management applications.

  • Digital control via keyboard
  • Digits for speed display
  • Separate motor and light activation
  • Size: 158x118x77 mm
  • Compact and ergonomic design
  • Optional load management: 230Vac -50Hz – Max 1A
  • Power supply: 85-265Vac – 50Hz
  • Maximum load motor: 4,5A
  • Maximum load lights : 2A
  • IP protection: IP56
  • Protection fuse: T10A
  • Low standby power consumption

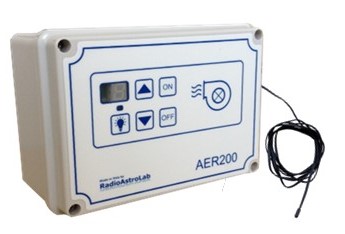

AER200/T 4,5A

Regulator equipped with a temperature probe.

Thanks to the temperature probe, the regulator automatically adapts the motor speed based on the detected value.

This allows for the optimization of system operation, improving energy efficiency and ensuring constant operating conditions without manual intervention.

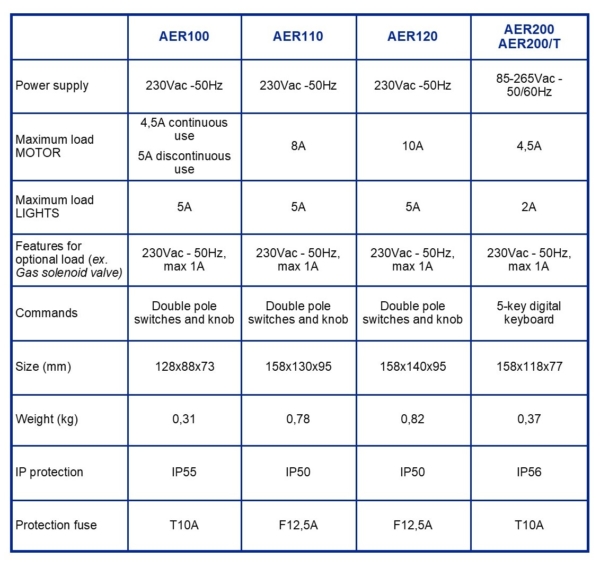

TECHNICAL CHARACTERISTICS

Contact us to choose the version that best suits your needs: marketing@radioastrolab.it.
